Samsung Galaxy S23 Battery Replacement: Step-by-Step Guide

Is your Samsung Galaxy S23 experiencing rapid battery drain? If so, it may be time to consider replacing the battery. This detailed explanation will lead you through the step-by-step procedure of replacing the battery in your Samsung Galaxy S23, ensuring a smooth and successful battery replacement process.

By following these clear and easy instructions, you can give your phone a fresh start and enjoy a longer lasting battery. Replacing the battery can make a big difference in how long your phone stays charged, so it's definitely worth considering if you're having battery problems.

With the help of this guide, you'll be able to replace the battery in your Samsung Galaxy S23 without any trouble. Say goodbye to short battery life and hello to extended usage time!

Required tools for replacement:

Before we dive into the step-by-step process, let's make sure you have all the necessary tools and materials ready:

1. Replacement battery for Samsung Galaxy S23
2. Phillips screwdriver
3. Spudger or plastic opening tool
4. Tweezers
5. Adhesive strips or double-sided adhesive tape
6. Heat gun or hair dryer
7. Clean cloth or microfiber cloth
8. Safety goggles and gloves (optional but recommended)

Now that you have everything you need, let's get started with the battery replacement process:

Step 1 - Switch off your Galaxy S23

• Make sure your Samsung Galaxy S23 is powered off before proceeding with the battery replacement.
• Locate the power button on the right side of your Samsung Galaxy S23 and press it down firmly.
• Press and hold the power button until the power off menu is displayed on the screen.
• Select "Power off" from the menu to shut down your Galaxy S23 completely.

Step 2 - Eject the SIM Card Tray

• Find the SIM card tray positioned on either the bottom or side of your phone.
• Grab a SIM card ejector tool or a small pin. These tools are often provided with your phone or can be purchased separately.
• Insert the ejector tool or pin into the small hole next to the SIM card tray. Apply gentle pressure until you feel resistance.
• Push the ejector tool or pin firmly into the hole to release the tray. The tray should pop out slightly from the phone.
• Gently extract the SIM card tray from the phone by fully pulling it out.

Step 3 - Heat All Sides of the Phone

• Obtain a heat gun or a hair dryer and ensure it is set to a moderate temperature.
• Hold the heat gun or hair dryer at a safe distance from your Samsung Galaxy S23, and aim it towards the edges of the phone.
• Move the heat source in a sweeping motion, evenly heating all sides of the phone.
• Continue this process for approximately one to two minutes, taking care not to overheat the device.

Step 4 - Use a Suction Cup

• Position a suction cup on the back cover, near the bottom edge of the phone. Ensure it is firmly attached.
• Apply gentle pressure to the suction cup, pulling it slightly away from the phone's frame.
• Simultaneously, use a plastic opening tool or a playing card to carefully create a gap between the back cover and the phone's frame.
• Work your way around the edges of the phone, gently sliding the plastic opening tool or playing card along the gap to gradually separate the back cover from the phone's frame.

Step 5 - Remove the Back Cover

• Carefully slide the tool along the edges, applying gentle pressure to separate the back cover from the phone.
• Be cautious and work slowly, ensuring not to exert excessive force or damage any internal components.
• Continue sliding the tool along the edges, gradually separating the back cover from the phone's frame.

Step 6 - Remove the NFC Antenna

• Look for the NFC antenna, a small rectangular component typically located near the top of the battery.
• Use a pair of tweezers to carefully disconnect the antenna from its socket.

Step 7 - Disconnect the Wireless Charging Coil

• Identify the wireless charging coil, a thin and flat component positioned at the bottom of the phone.
• Gently disconnect the connecting cable that is attached to the charging coil.

Step 8 - Detach the Connecting Cables

• Carefully locate and identify the various connecting cables attached to the motherboard, such as the display cable, digitizer cable, and front-facing camera cable.
• Utilize a plastic opening tool or tweezers to cautiously disconnect the cables from their corresponding connectors. Ensure you exert gentle force and avoid applying excessive pressure during the disconnection process.

Step 9 - Detach the Screen Cable

• Locate the screen cable on the motherboard, typically positioned near the top.
• Using a plastic opening tool or tweezers, carefully detach the connector of the screen cable. Exercise caution to avoid applying excessive force while disconnecting it.

Step 10 - Remove the Battery Connector

• Find the battery connector, a small plastic component that connects the battery to the motherboard.
• Utilize a plastic opening tool or tweezers to gently disconnect the battery connector. Exercise care while doing so to avoid applying excessive force.

Step 11 - Remove the Old Battery

• With all the necessary connectors detached, it is now safe to remove the old battery from the phone.
• Carefully lift the battery using a plastic opening tool or tweezers, making sure to avoid any bending or puncturing of the battery. Exercise caution during this step.

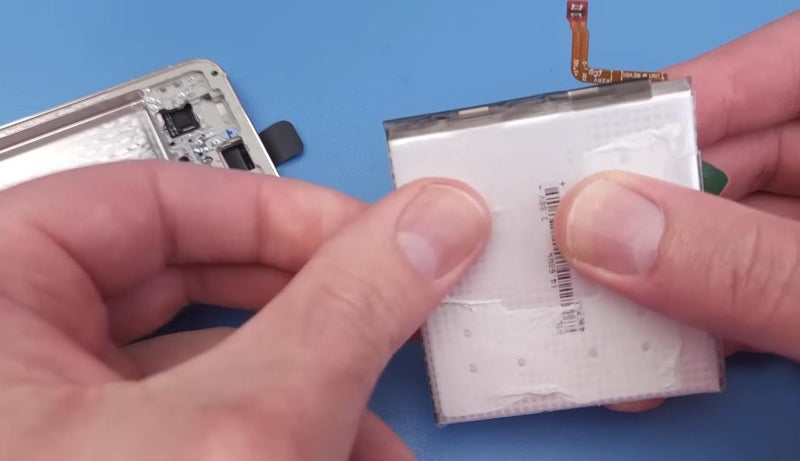

Step 12 - Prepare the New Battery

• Take out the replacement battery intended for the Samsung Galaxy S23 and verify that it is compatible with your device.
• Before installation, remove any protective film or packaging from the new battery. Make sure it is clean and free from any obstructions.

Step 13 - Insert the New Battery

• Position the new battery in the same orientation as the old battery.
• Gently press the new battery into place, ensuring it is properly aligned.
• Pay attention to aligning the battery connector with the corresponding slot on the motherboard. Make sure to establish a secure and correct connection between the battery and the device.

Step 14 - Connect the Charging Coil

• Take the connecting cable and carefully reconnect it to the wireless charging coil.
• Take your time to ensure the connection is secure and properly aligned.
• Verify that the cable is firmly attached to the charging coil, providing a secure connection.

Step 15 - Attach the Screen Cable

• Carefully align the screen cable with its connector.
• Ensure a snug fit by gently pressing the connector into place using a plastic opening tool or tweezers.
• Make it sure not to apply excessive force while pressing the connector, ensuring a secure and proper connection.

Step 16 - Attach the Connecting Cables

• Begin by reconnecting the display cable, digitizer cable, and front-facing camera cable, which were previously detached.
• Take extra care to align each connector properly with its respective socket.
• Ensure a firm and secure connection for each cable by firmly pressing the connectors into place.
• Double-check that all the cables are securely attached to their connectors to avoid any connectivity issues.

Step 17 - Insert the NFC Antenna

• Take the NFC antenna and locate its corresponding socket.
• Carefully insert the NFC antenna into its socket, ensuring it is securely connected.
• Double-check that the antenna is properly seated and has a snug fit in its socket to ensure reliable NFC functionality.

Step 18 - Test Your Galaxy S23

Before attaching the back cover of the phone, it's essential to test the functionality of your Samsung Galaxy S23. Press the power button to turn on the device and check if it boots up successfully. Verify that the battery is charging and that all functions are working correctly.

Step 19 - Attach the Back Cover

• Position the back cover in alignment with the phone's frame.
• Gently press down on the back cover until it clicks into place.
• Ensure that all the edges of the back cover are securely sealed to maintain the integrity of the phone's enclosure.
• Verify that the back cover is firmly attached to the phone's frame by giving it a gentle tug or inspecting for any gaps.

Conclusion

You have successfully replaced the battery in your Samsung Galaxy S23. With your phone's new battery, you can now enjoy extended battery life and improved performance.

Remember to dispose of the old battery responsibly. Many electronic retailers offer battery recycling programs, so be sure to check if there's one available near you.

Following this step-by-step guide can help you replace the battery in your Samsung Galaxy S23 without the need for professional assistance. Enjoy your revitalized phone and its enhanced battery performance.
